Product Detail
PH4 indoor LED model
Name : PH4 indoor model
Model : P4:SMD2121

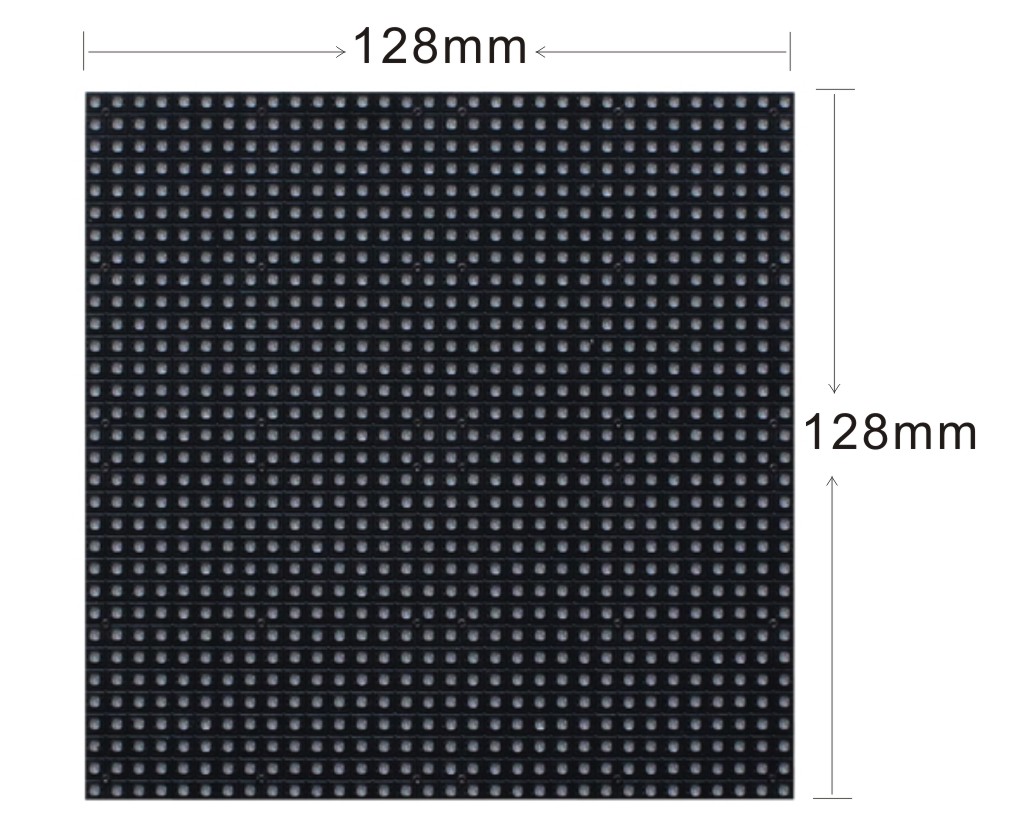

Size : 128mm*128mm
Detail

Product features

1.High quality LED chip and high anti-static electricity capacity.

2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3.The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.

4.Ultra high brightness,low attenuation,high reliability and weather ability.

5.High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.

6.High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.

Application scopes

Widely applied to traffic information distribution of station,quay and qirport,conference,shoppingmall,brand presentantion,TVstation,stageshow,concert and so on.

 Items

 Parameter

 LED Encapsulation

 SMD 2121

 Pixel Pitch

 4mm

Module Resolution(W*H)

 32* 32

 Module Size

 128*128mm

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 62500 pixel/㎡

 Driving Method

 1/16 Scan

1/8 Scan

 Refresh Frequency

 ≥1920Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 White Balance Brightness

 >1000cd/㎡ (Black) />1600cd/㎡(White)

>1000cd/㎡ (Black) />1600cd/㎡(White)

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

Optimal Viewing Distance

 >4m

 Working Voltage

 DC4.2V

Max Power Consumption

 10W/pcs(White Balance)

15W/pcs(White Balance)

 Avg Power Consumption



6W/pcs(Normal Working)

8W/pcs(Normal Working)

 Lifetime

 50000 Hours

 Operating Temperature

 -10℃ ~50℃

 Weight

 0.2kg/pcs
