Product Detail

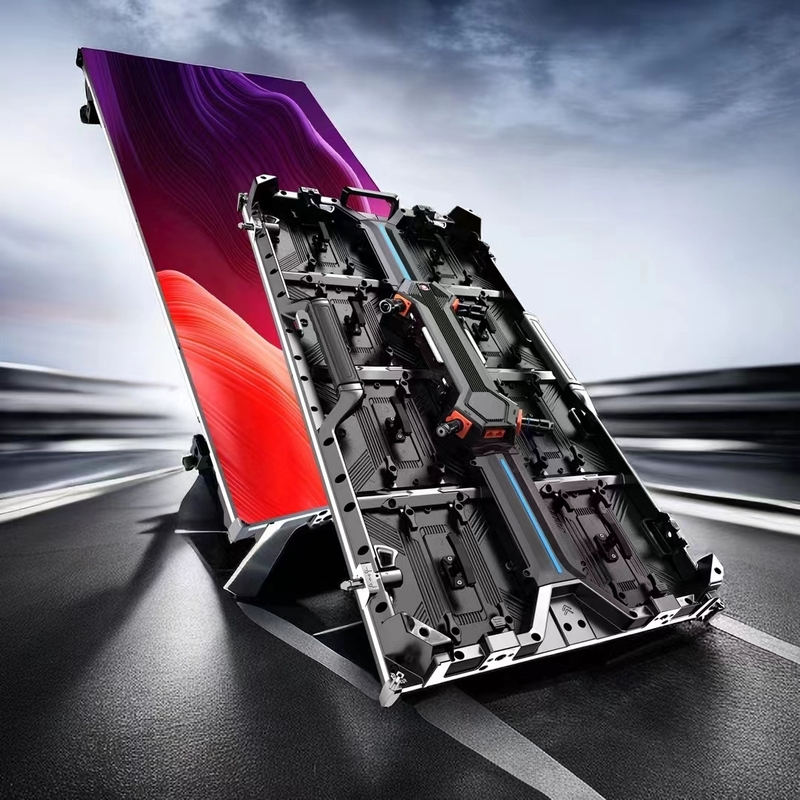

P3.91 Rental LED display(500*500)
Name : indoor 3.91mm Stage rental led display
Model : P3.91
Size : 500*500mm
Detail

Product introduction:Innovative design of the cabinet, simple and generous, light weight, easy installation and dismantling, high refreshment, high grey scale, low power consumption, Particular black lamp design, super photographic effects.


Basic technical parameters of the product:


ITEM

P3.91
Pixel   Pitch(㎜)3.91
Pixel   Density(pixel/㎡)65536
Pixel   Component1R1G1B
LED   ConfigurationSMD2121/2020
Panel   Dimension(W×H)(mm)250*250
Scan   Mode1/16,1/32
Cabinet   Dimension(W×H)(mm)500*500
Cabinet   Materialdie-casting aluminum
Cabinet   Weight Kg8
Brightness(cd/㎡)>1000Nit
Color   Temperature3200K-9500K
Viewing   Angle(V)140°
Viewing   Angle(H) 140°
Contrast   Ratio3000:1
Max   Power Consumption(w/㎡)≤800
Ave   Power Consumption(w/㎡)≤300
Operating   Power SourceAC85~264V(47-63Hz)
Frame   Frequency(Frame/S)60
Refresh   Rate(Hz)≥1200,≥2880,
Gray   LevelRGB65536Grade
Brightness   Adjustment Level256Grade
Brightness   Adjustment ModeManual/Automatic/Programmable
Control   DistanceUTP<100m;Muti Mode   Fiber<500m;Single Mode Fiber<10Km
Operating   Temp﹣20℃-﹢50℃
Operating   Humidity10%-90%RH
Protecting   RatingIP31
MTBF>10000h
LED   Life Span>100000h
LED   Best View distance3m-100m
