Product features
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weather ability.
5.High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6.High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Application scopes
Widely applied to traffic information distribution of station,quay and qirport,conference,shoppingmall,brand presentantion,TVstation,stageshow,concert and so on.

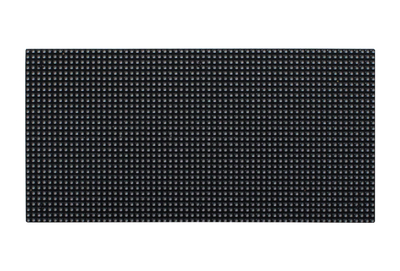

Items | Parameter |
LED Encapsulation | SMD 2121 |
Pixel Pitch | 3mm |
Module Resolution(W*H) | 64* 32 |
Module Size | 192*96mm |
Pixel Configuration | 1R1G1B(3 in1) |
Pixel Density | 111111 pixel/㎡ |
Driving Method | 1/16 Scan |
Refresh Frequency | ≥1920Hz(Supporting high refresh rate and depending on system configuration) |
Driving IC | Special constant current IC with high refresh rate and high gray scale |
Grey Scale | ＞14BIT(According to system and IC equipped) |
White Balance Brightness | ＞1300cd/㎡ |
Color Temperature | 8000K ± 500(adjustable) |
Viewing Angle | Horizontal Angle 140° Vertical Angle 120° |
Optimal Viewing Distance | ＞3m |
Working Voltage | DC4.2V |
Max Power Consumption | 15W/pcs(White Balance) |
Avg Power Consumption | 8W/pcs(Normal Working) |
Lifetime | 50000 Hours |
Operating Temperature | -10℃ ~50℃ |
Weight | 0.2kg/pcs |
