Product introductionInnovative design of the cabinet, simple and generous, light weight, easy installation and dismantling, high refreshment, high grey scale, low-energy, Particular black lamp design, super photographic effects.

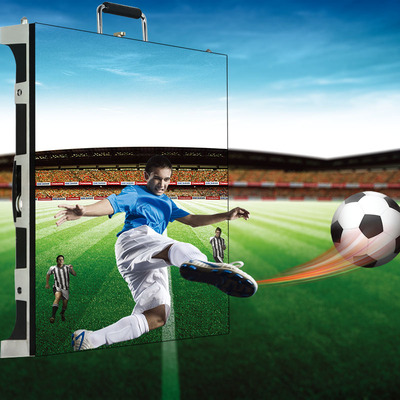

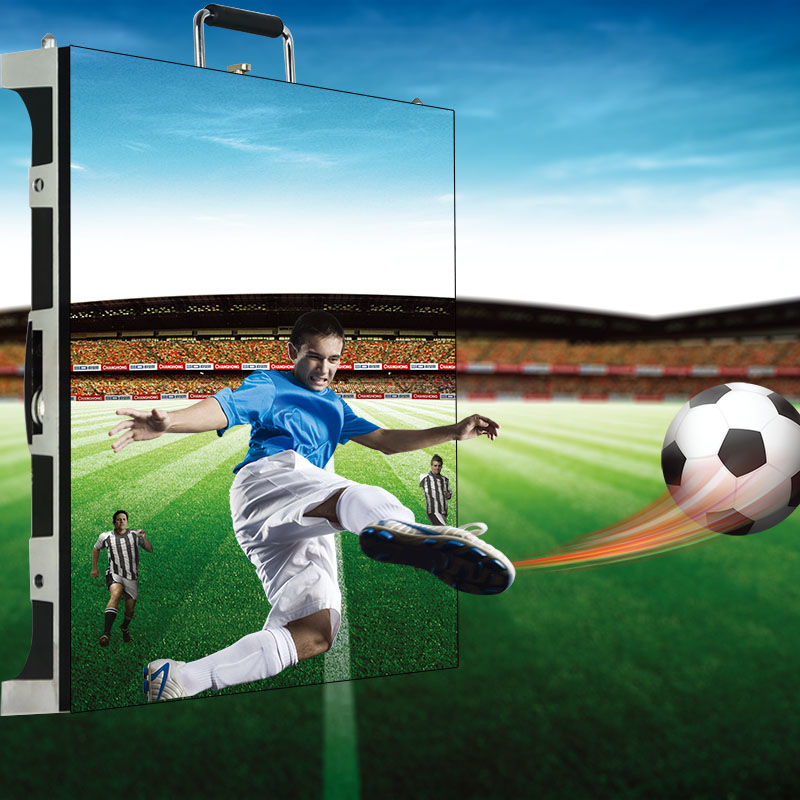

P6.25 Indoor Led Screen
| ITEM | P6.25 |
| Pixel Pitch(㎜) | 6.25 |
| Pixel Density（pixel/㎡) | 25600 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD3528 |
| Panel Dimension(W×H)(mm) | 250*250 |
| Scan Mode | 1/4 |
| Cabinet Dimension(W×H)(mm) | 500mm*500mm,500mm*1000mm |
| Cabinet Material | die-casting aluminum |
| Cabinet Weight Kg | 7 ,13 |
| Brightness（cd/㎡） | 1800Nit |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 120° |
| Viewing Angle(H) | 120° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption（w/㎡） | ≤550 |
| Ave Power Consumption（w/㎡） | ≤220 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency（Frame/S） | 60 |
| Refresh Rate（Hz） | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP31 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 6m-100m
|
